High stability process scale and automatic calibration device

High stability, high precision, self calibration, and maintenance free

Technical Overview:

The high-precision and high stability process scale produced by Yike Company adopts the currently advanced artificial intelligence weighing technology, equipped with specific ultra-high sensitivity sensors and artificial intelligence weighing controllers (using multiple sets of AD matrix arrangement, weighing accuracy up to ± 0.2%, and a stability verification cycle of over 6 months, which can achieve worry free operation)! Used in various process stages, according to different requirements, it can provide high cost-effectiveness accuracy levels of 0.2%~0.5 for users to choose from. Meet the requirements for full process use.

Unattended configuration:

Equipped with a unique intelligent calibration system, each sensor has independent AD detection, fault alarm, and out of tolerance removal functions, ensuring that the belt scale maintains long-term high-precision and high stability operation.

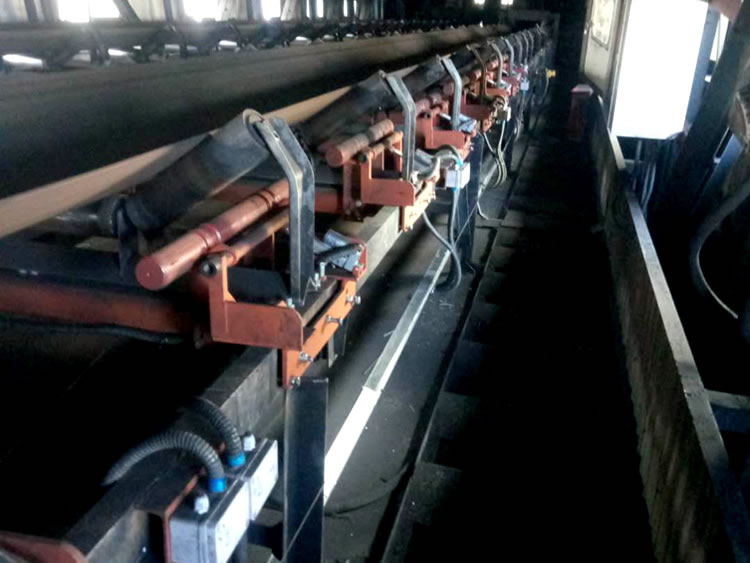

The automatic code hanging verification device is installed on the main scale body of the electronic belt scale, with a proprietary structure that meets the simulation of the gravity state of the transported material. It automatically completes the full state verification of the belt scale, using the SEQ-AI intelligent algorithm and matrix control tracking and review technology. It automatically completes monitoring, verification and correction during operation and use.

Core patented technology:

The ECO fully intelligent matrix scale achieves high stability and precision while truly solving two fundamental problems of belt scales: 1) knowing when the scale fluctuates; 2. Real time online automatic correction of accuracy.

Applicability of process scales:

It is widely applicable to the transportation and metering of various bulk materials. The use accuracy is divided into four grades: 0.2%, 0.3%, 0.4% and 0.5%. The one-time stability calibration period can be more than 3 months. All must have high stability, self calibration, and maintenance free.

Application scenario:

Electric coal conveying system, coal washing plant coal conveying system, coal chemical coal conveying system, coal mine coal conveying system;

All bulk material conveying systems in steel plants, including iron front conveying system, port conveying system, cement plant conveying system, ore conveying system, chemical conveying system, etc

Technical features:

The fully intelligent high-precision belt scale adopts advanced artificial intelligence weighing technology, equipped with customized ultra-high sensitivity sensors and artificial intelligence weighing controllers, with a usage accuracy of up to 0.2% and a stability period of over 6 months. Its unique matrix automatic verification system is equipped with functions such as independent AD detection, fault diagnosis, and out of tolerance elimination for each sensor, ensuring long-term high-precision and stable operation of the belt scale. The automatic code hanging verification device completes automatic verification. It truly achieves high-precision, self calibration, and maintenance free, thereby ensuring the accurate measurement of the belt scale.

Technical principles:

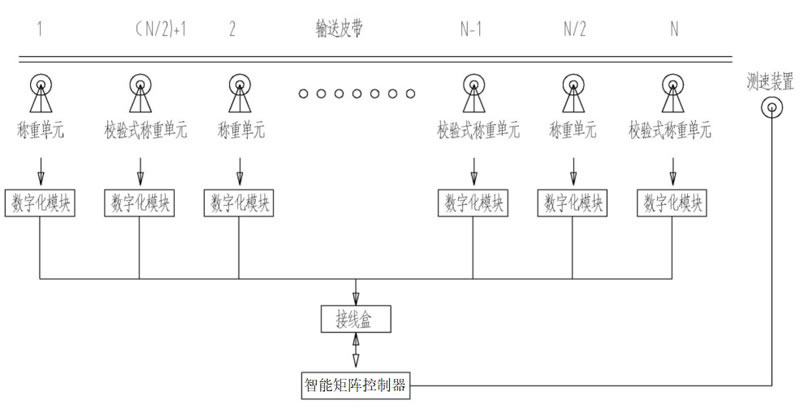

No matter the matrix scale is in the no-load or loaded state, as long as the intelligent matrix instrument judges that individual weighing units of the system are out of tolerance, it can automatically conduct real-time automatic mutual calibration. The internal intelligent data model of the instrument will lift the electric weight device of the matrix scale unit at intervals, and automatically correct the instantaneous amount and Cumulant of the rated weight, so that the matrix scale system will always maintain a stable operation in a high-precision state, truly achieving the maintenance free matrix scale, Fully automatic self inspection and high-precision operation without manual interference.

Applicability of process scales:

It is widely applicable to the transportation and metering of various bulk materials. The use accuracy is divided into four grades: 0.2%, 0.3%, 0.4% and 0.5%. The one-time stability calibration period can be more than 3 months. All must have high stability, self calibration, and maintenance free.

Application scenario:

Electric coal conveying system, coal washing plant coal conveying system, coal chemical coal conveying system, coal mine coal conveying system;

All bulk material conveying systems in steel plants, including iron front conveying system, port conveying system, cement plant conveying system, ore conveying system, chemical conveying system, etc

Technical features:

The fully intelligent high-precision belt scale adopts advanced artificial intelligence weighing technology, equipped with customized ultra-high sensitivity sensors and artificial intelligence weighing controllers, with a usage accuracy of up to 0.2% and a stability period of over 6 months. Its unique matrix automatic verification system is equipped with functions such as independent AD detection, fault diagnosis, and out of tolerance elimination for each sensor, ensuring long-term high-precision and stable operation of the belt scale. The automatic code hanging verification device completes automatic verification. It truly achieves high-precision, self calibration, and maintenance free, thereby ensuring the accurate measurement of the belt scale.

Technical principles:

No matter the matrix scale is in the no-load or loaded state, as long as the intelligent matrix instrument judges that individual weighing units of the system are out of tolerance, it can automatically conduct real-time automatic mutual calibration. The internal intelligent data model of the instrument will lift the electric weight device of the matrix scale unit at intervals, and automatically correct the instantaneous amount and Cumulant of the rated weight, so that the matrix scale system will always maintain a stable operation in a high-precision state, truly achieving the maintenance free matrix scale, Fully automatic self inspection and high-precision operation without manual interference.

Product advantages:

1. High precision 2. Self calibration 3. Maintenance-free 4. High stability 5. Intelligence 6. Networking

Minimum flow rate: 1t/h

Maximum flow rate: 15000t/h

Usage accuracy: 8-16 sets of units ± 0.2%; 6 groups of units ± 0.3%; 4 groups of units ± 0.5%

Calibration accuracy: 8-16 groups of units ± 0.1%; 6 groups of units ± 0.15%; 4 sets of units ± 0.25%

Matrix unit: 4~16

Verification method: automatic verification

Display method: high-definition color screen

Instrument form: intelligent matrix controller

Stability period:>3 months

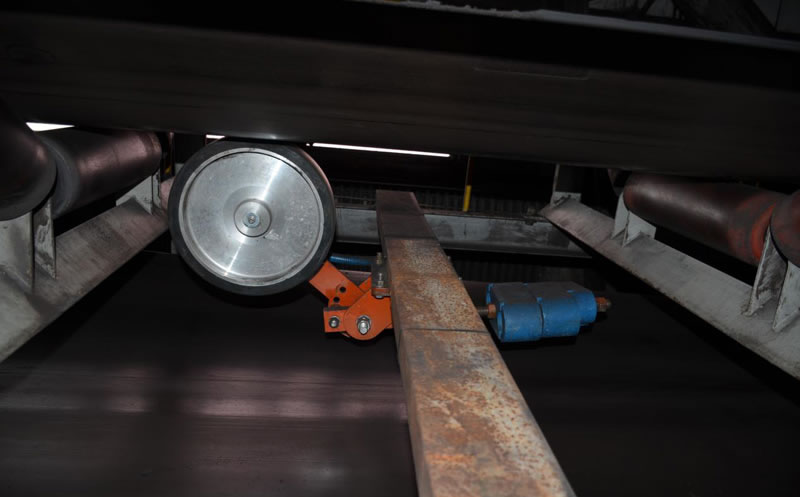

Speed measurement method: upper mounted real speed measurement

Applicable belt speed: 0.01-6m/s

Applicable inclination angle: 0-22 ° (material does not slip)
