eaccor provides a comprehensive solution for verifying belt scales, ranging from physical verification of hopper scales, automatic loop chain code verification of simulated physical objects, hidden box chain code verification, winch chain code verification, to ordinary chain code verification and hanging code verification. Based on the actual needs of customers, ECO provides cost-effective solutions that fully meet their needs.

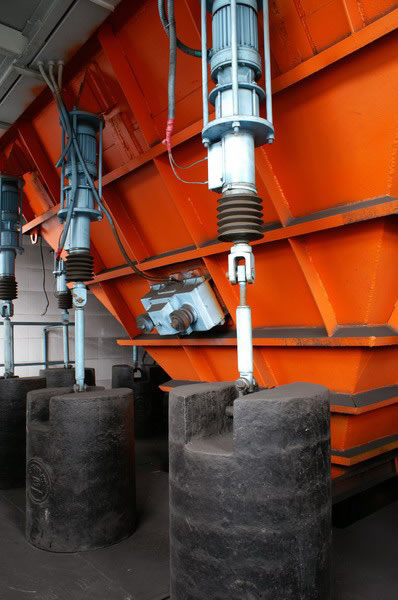

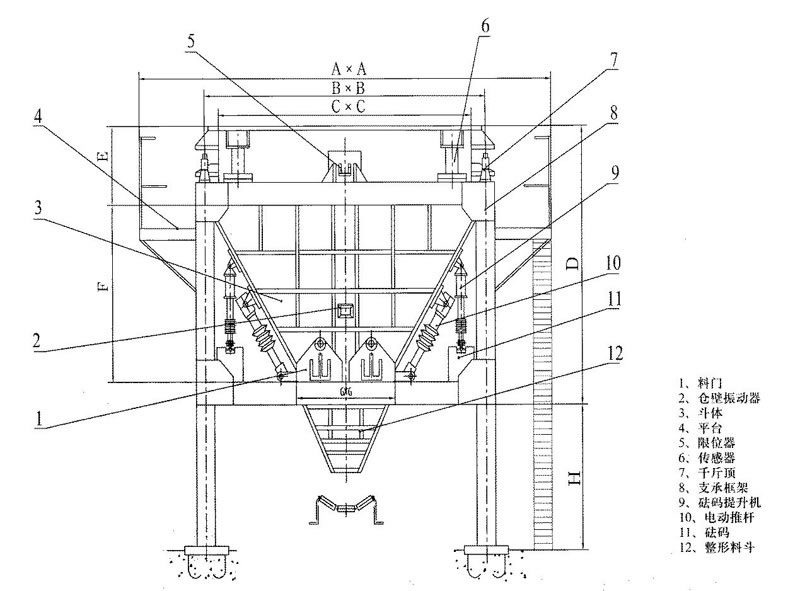

eaccor-PJ type physical calibration device is a high-precision static electronic hopper scale, mainly used for physical calibration of electronic belt scales. Its calibration accuracy is much higher than that of hanging code calibration and chain code calibration, achieving automatic operation throughout the entire process. It is an indispensable supporting equipment in bulk material measurement management and commercial settlement work.

Main technical parameters

System comprehensive accuracy: ± 0.1%

Effective weighing range: 5~150t

Standard weight accuracy: M1 level

Standard weight specifications: 1t/piece or 2t/piece (integrated)

Overload capacity: ≤ 120% F.S

System characteristics

Adopting PLC control technology, the operation control is centralized, and calibration is simple and convenient.

The system's self inspection, production, and material control can achieve program automation.

Using integral weights, the lifting and lowering of the weights are carried out using an electric hoist, making it easy to operate.

The system adopts a fully suspended structure to ensure weighing accuracy and stability.

It can communicate with the upper computer through networking to achieve remote operation of system equipment.
