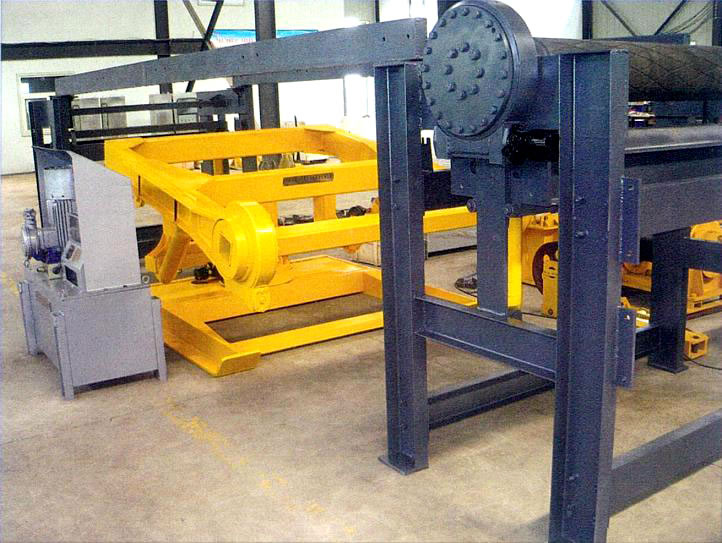

Hydraulic belt winding device for belt conveyors
With the increasing application of belt conveyors, it is required to quickly, efficiently, and safely recover the winding belt. When manually recycling, cutting the belt to a certain length, manually pulling it out, manually folding it, manually lifting it onto a transport vehicle, and returning it to the belt warehouse is labor-intensive, labor-intensive, time-consuming, and causes huge waste of personnel
The hydraulic belt winding device of a belt conveyor, also known as the hydraulic belt winding device, uses hydraulic pressure as the power to press, roll, extract, and load the belt. It realizes the mechanical operation of belt recycling, reduces labor costs, reduces labor intensity, shortens working time, improves work efficiency and safety. This device has a sturdy structure, convenient installation, simple operation, low maintenance cost, and small space occupation, making it suitable for underground working environments. This device can also be used for the installation and recycling of ground belts
Due to its reasonable design, the hydraulic coiling device has high reliability and low failure rate. Even if maintenance is required on the coiling device, it can be carried out without stopping the belt conveyor, and there is no need to lift the coiling device to the well for maintenance, reducing maintenance costs and ensuring the working time of the belt conveyor.

Technical Parameter
1. Product model and basic parameters:

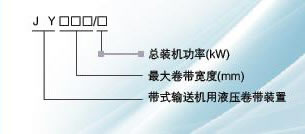

Example of marking:
Indications: The width of the large coil is 2000mm, and the total power of the coil is 22kW. Its model is marked as JY2000/22.

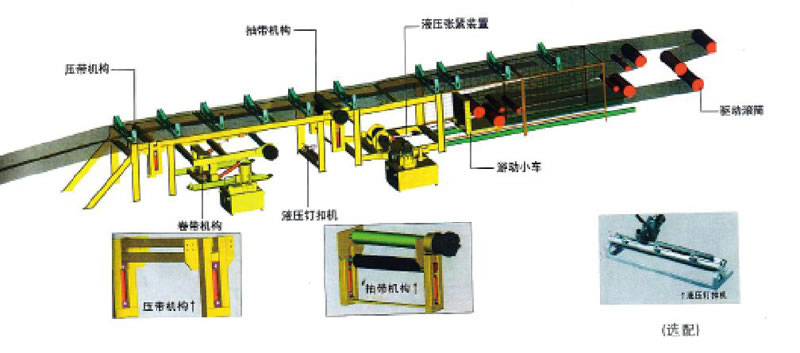

Working process

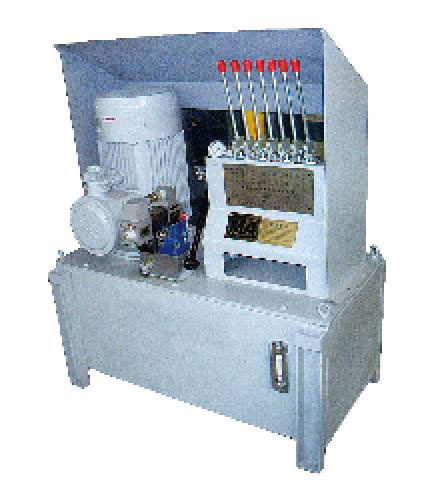

1. Start the hydraulic station with a magnetic starter and use a manual control valve to control the belt pressing mechanism to tighten one end of the belt. Simultaneously control the belt pulling mechanism and clamp the belt between the upper and lower rollers
2. Loosen the belt tensioning mechanism to release the belt from the tensioning trolley. The manual control valve controls the hydraulic motor of the belt pulling mechanism to drive the fixed roller, which pulls the belt through the friction between the fixed roller and the movable roller, stopping the belt with a belt joint in the middle of the retraction and retraction belt frame
3. Remove the belt joint and install the broken end of the belt on the winding machine. Control the winding machine to roll the tape clockwise& Nbsp; When the belt reaches the recycling length, stop the winding mechanism, disconnect the belt joint, and use a belt buckle to connect the broken end of the belt between the belt pulling mechanism and the belt pressing mechanism

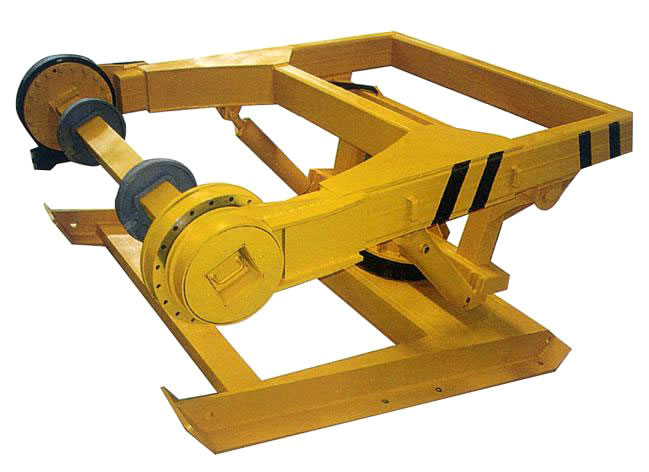

4. Release the pressing and pulling mechanisms& Nbsp; Operate the belt winding mechanism to drive the bracket to rotate in a vertical position with the conveyor, and place the rolled belt on the transport vehicle.

Equipment characteristics
