- Product name：CAP capacitor level gauge
- Product number：
- Usage accuracy：
- Product Overview：
Technical description of capacitance level gauge:
Overview
The CAP series point position controller is dedicated to monitoring the solid, liquid, and mud point positions in dry material warehouses, ship warehouses, and chutes, which can prevent overfilling, chute blockage, and empty warehouses, thereby eliminating material overflow, material waste, and equipment downtime. CAP can also be used as a high and low level indicator in plastics, food, chemicals, mud, or other materials. The CAP series controller detects the presence or absence of materials by measuring changes in the dielectric constant of materials and air, resulting in changes in capacitance. To detect these small changes, the CAP series sensor uses a detection circuit that can operate at a relatively low frequency (6KHz). Unlike other capacitive sensors, the CAP series operates at a frequency lower than the RF (radio frequency) level and is not limited by FCC rules.
Device Description
The CAP series capacitive level controller has a "fault automatic protection" structure that can eliminate fault displays caused by power outages. The high/low optional switch allows the sensor to be set as fault self-protection. When there is no material, the low material level is set as fault self-protection, or when there is material, the high material level is set as fault self-protection. When a power outage occurs, the controller will indicate the safety status set by the user. Another important feature of the CAP controller is the adjustable time delay control, which can reduce misoperation caused by sudden material fluctuations and liquid splashing by delaying for 10 seconds.
The CAP II series material level controller has a shielding structure that can eliminate misoperation caused by equipment sensing surface material accumulation. With this shielding, the sensor automatically compensates for the impact caused by material accumulation and only indicates the presence or absence of the target material. These structures make this controller a good choice for measuring high fly ash or viscous materials.
Features:
• No RF interference
Quick calibration settings make the selection of detection sensitivity easier
Calibration stability from -40 ° C to+82 ° C (-40 ° F to+180 ° F)
UL/CSA certification
• NEMA 4X, 5, 9&12 for NEC Class II, Div 1&2 Gr. E, F&G
The probe with Delrin sheath is suitable for most solid, liquid, and slurry materials
No error alarm when material accumulates on the side wall
• Electrostatic discharge protection function
4. Technical specifications
|
model |
CPAIIX |
CAPIIX-FL |
CAPIIIX |
|
|
power supply |
120/240 VAC, 50/60 Hz ±15%, 5VA |
120/240 VAC, 50/60 Hz ±15%, 5VA |
115/230 VAC, 50/60 Hz ±15%, 5VA |
|
|
Relay |
DPDT 10 amps at 250 VAC |
DPDT 10 amps at 250 VAC |
DPDT 5 amps at 250 VAC |
|
|
ambient temperature |
-40°C to +85°C (-40°F to +185°F) |
-40°C to +85°C (-40°F to +185°F) |
-40°C to +85°C (-40°F to +185°F) |
|
|
probe |
121°C (250°F) Delrin,® |
66°C (150°F)standard type |
121°C (250°F) Delrin,® |
|
|
|
260°C (500°F) Teflon® |
232°C (450°F) high-temperature type |
260°C (500°F) Teflon® |
|
|
pressure |
35 kg/cm2 (500 PSI), |
35 kg/cm2 (500 PSI), |
35 kg/cm2 (500 PSI), |
|
|
|
19.05 mm (0.75 in) installation |
19.05 mm (0.75 in) installation |
19.05 mm (0.75 in) installation |
|
|
Sensitivity setting |
1～10 Pf adjustable |
1～10 Pf adjustable |
Above 1 pf |
|
|
alibration |
Quick setting of coarse/fine single turn Potentiometer |
Quick setting of coarse/fine single turn Potentiometer |
Quick setting of coarse/fine single turn Potentiometer |
|
|
fail safe |
High/low switch optional |
High/low switch optional |
High/low switch optional |
|
|
time delay |
0.25 ～10s adjustable |
0.25 ～10 s adjustable |
0 ～15 s adjustable |
|
|
housing |
Cast aluminum, bolted top cover, USDA certified surface |
Cast aluminum, bolted top cover, USDA certified surface |
Cast aluminum |
|
|
Wire interface |
DN20 (0.75 inches - NPT) |
DN20 (0.75 inches - NPT) |
DN20 (0.75 inches - NPT) |
|
|
install |
DN32 (1.25 inches - NPT) or DN20 (0.75 inches - NPT) 316 SS |
Flat seamless installation |
DN32 (1.25 inches - NPT) or DN20 (0.75 inches - NPT) 316 SS |
|
|
CAP Shield |
Compensate for material accumulation on the sensing probe |
Compensate for material accumulation on the sensing probe |
none |
|
|
Certification level |
NRTL/C; NEMA 4X, 5, 9 and 12 fireworks, flooded 36866;, using Class II Group E, F, & G; |
|||
|
status indicator |
When the material comes into contact with the probe, the internal LED indicates |
Visible LED indicating probe status: not in contact, contact&power failure |
When the material comes into contact with the probe, the internal LED |
|
|
Probe Options |
Standard Delrin, Teflon, bare stainless steel, food grade, flexible extension, short and thick, with sheath |
Flat panel installation, standard and high-temperature types |
Standard Delrin, Teflon, bare stainless steel, food grade, flexible extension, short and thick, with sheath |
|
5. Model Description
|
CAP IIX |
CAP IIX-FL |
CAP IIIX |
|

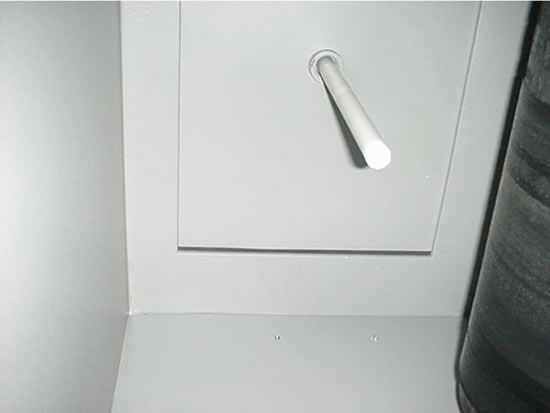

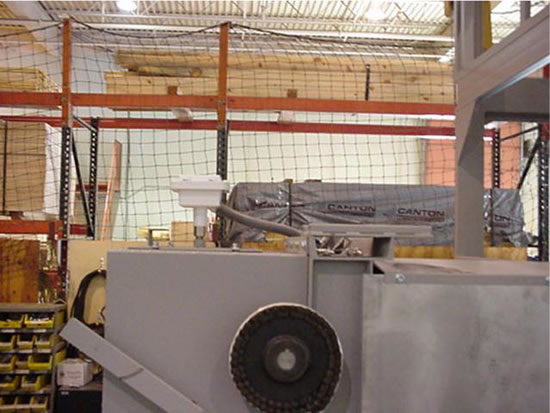

The CAP IIX capacitive level gauge is designed for materials that are prone to accumulation at the probe. Its shielding probe can automatically compensate for material accumulation and indicate the true presence/absence of materials in the silo. In addition, CAP IIX is specifically designed for use in hazardous environments. |

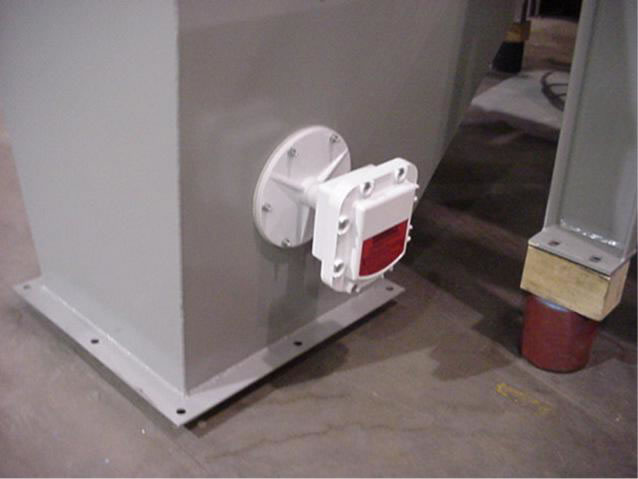

The CAP IIX-FL capacitive level gauge is a flat panel installation version of CAPIIX and has the same level of hazardous environmental protection as it. The edge of the flat flange also has a shielding option to compensate for material accumulation. |
The CAP IIIX capacitor level gauge is a reliable and economical product. The probe is made of 15.88 mm (0.625 in) stainless steel structure, providing enhanced durability for use in corrosive and abrasive environments. On the basis of ensuring reliability and durability, CAP IIIX is the most economical capacitor level gauge |
