Intelligent automatic guide device

　According to the on-site conditions and usage characteristics of the belt conveyor, belt deviation often occurs due to reasons such as low temperature, unstable tension, roller movement, roller sticking, roller jamming, material deviation, and flushing. Choose to install 2 sets of intelligent automatic guiding devices in the head and tail bearing sections of the coal conveyor belt, each of which can ensure the good operation of the 50m conveyor; The balance adjustment of the conductivity leads to the phenomenon of deviation during the operation of the belt, and avoids the installation of the weighing area of the belt scale to strengthen the stable operation of the belt conveyor and ensure the measurement

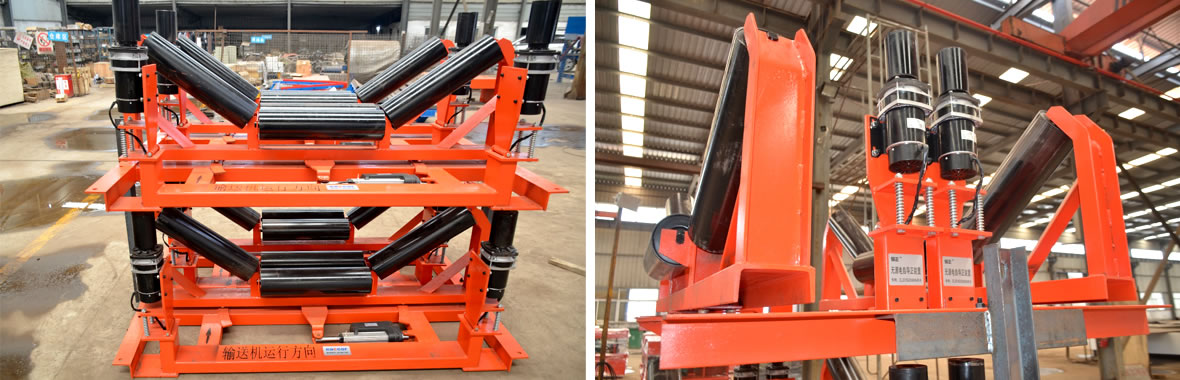

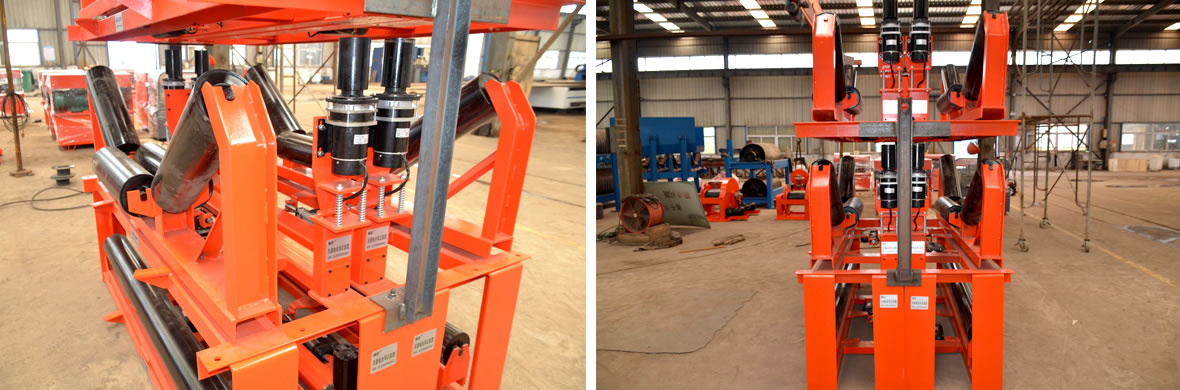

The intelligent passive electric automatic guiding device uses two conductive rollers installed on both sides of the conveyor belt bracket as power sources to dynamically monitor the operation status of the belt in real-time. When the belt deviates, it contacts the conductive rollers, which rotate to drive a micro high-efficiency generator to generate electricity. The inverter rectifier controller sends a control signal to control the high-strength special electric push rod for self guiding work. This device completely solves the shortcomings of low efficiency of ordinary mechanical correction in the past, interference with the stable operation of conveyors, and often failure of correction effects caused by various external factors

The passive electric automatic guiding device is arranged indoors/outdoors, and the workplace is damp and dusty. The equipment should meet the requirements of relevant specifications and must meet the requirement of 24-hour continuous operation. After determining the installation quantity and position of the high-efficiency passive electric guide device according to the conveyor system parameters, the phenomenon of conveyor deviation should be completely eliminated. The working power supply of the passive power generation and correction device is passive; Adopting stainless steel high-strength special push rod, with a power of 50000N; Insulation level is F-s3; The system protection level is above IP68. High strength electric actuator has mechanical self-locking function and electronic braking Dwifungsi. Reached an unmanned and all-weather working mode that is not affected by the working environment. Solve the technical defects of the original mechanical centering roller group's disorderly adversarial correction and lack of self-locking ability, completely solve the stubborn problem of belt deviation, and always control the conveyor belt deviation within 10mm, without damaging the belt or interfering with operation.
