- Product name:eaccor-AS spiral drilling sampling and preparation system
- Product number:
- Usage accuracy:
- Product Overview:
eaccor-AS spiral drilling sampling and preparation system

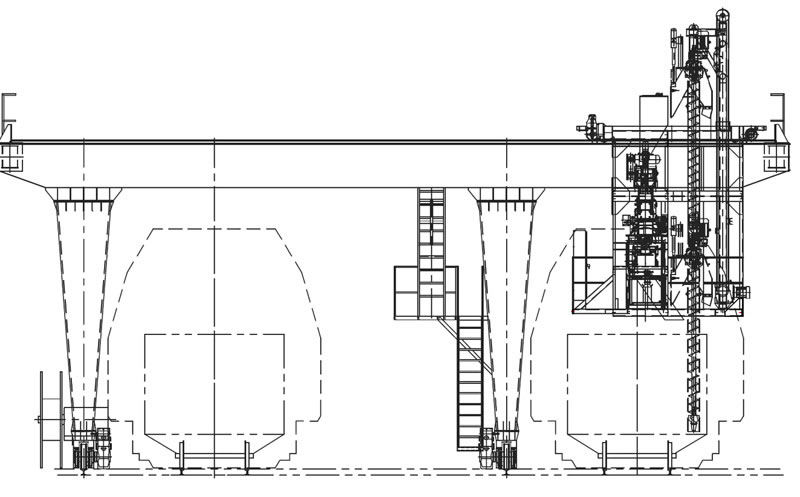

ASM door type
This image shows a portal spiral drilling sampling system, which is composed of a portal crane, a mobile car, a spiral drilling sampling machine, and sampling equipment. The system features a gantry crane that can walk along the direction of the train track, a mobile car installed on the gantry crane that moves perpendicular to the direction of the train track, and a spiral drill that moves up and down. This allows for sampling at any point in any carriage. The remaining materials are returned to the sampling point on site.
The spiral drilling sampling machine, upper and lower driving devices, all sample preparation equipment, electrical control cabinet, and operation room are connected to the mobile car and move with the car.

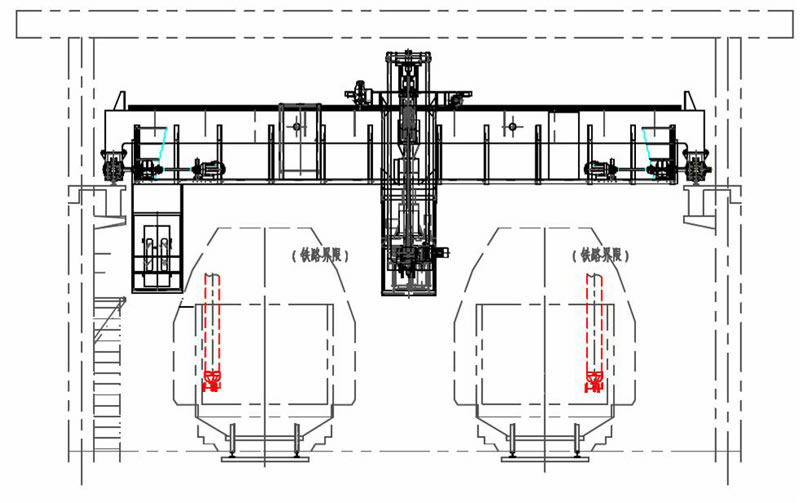

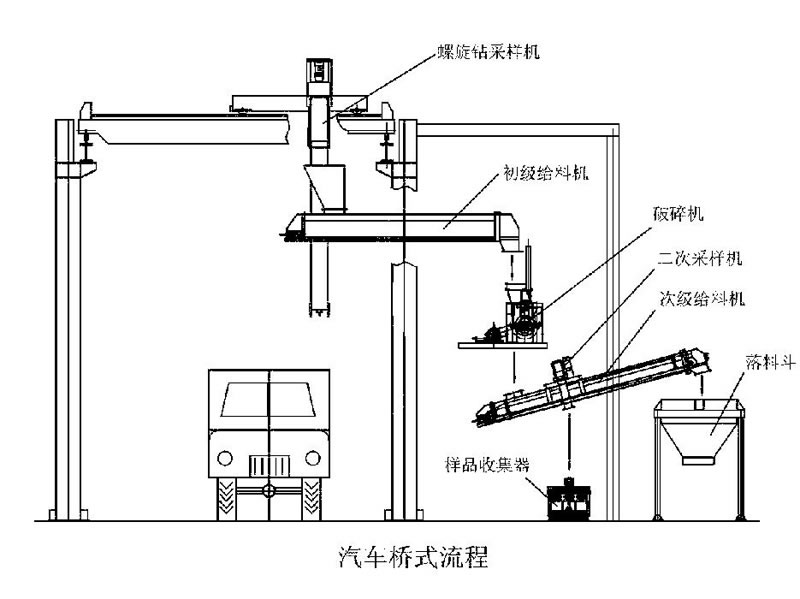

ASQ bridge type
This image shows a typical bridge spiral drilling sampling system. The system consists of a bridge crane, a mobile car, a spiral drilling sampling machine and driving device, sample preparation equipment, electrical control system, etc
The characteristics of the system are that the bridge crane moves forward and backward on the track erected by the light steel structure, the mobile car moves left and right on the track of the bridge crane, and the spiral drill moves up and down, which can achieve sampling at any point in any carriage
The characteristics and advantages of the door and bridge spiral drilling and sampling system
The gantry (bridge) crane, mobile trolley, and spiral drill move uniformly in a straight line, ensuring smooth and reliable movement
Randomly select points to eliminate human interference
Strong representativeness, with effective anti blocking measures in place
Short single point sampling time
Fully automated operations can be achieved using devices such as touch screens and industrial computers.
