Technical description:

Tilt switch and controller - for material flow, blockage, and material level detection

Working principle:

When the vertically suspended tilt switch deviates from the vertical direction by more than 15 ° after being subjected to the force of materials, the Mercury switch in the tilt switch acts. No matter which direction it tilts, the normally closed contact will open. When the tilt switch is separated from the material, the Mercury switch will be turned on after the tilt switch returns to the vertical position. After assembling the guide plate, it can be used for high flow material flow and material level detection; After assembling stainless steel floating balls, it is specifically used for detecting grain flow and material level, as well as liquid flow and material level. The explosion-proof type can be used in gas and dust explosion-proof areas.


Technical parameters:

1) Rated voltage of 20-39 tilt switch probe: 24VDC/1A

2) Probe operating temperature: -30~+80 ℃

3) Voltage of the 20-38 controller: 220VAC

4) Controller operating temperature: -40~+70 ℃

5) Alarm time delay: 0-10 seconds adjustable

6) Rated contact: 24VDC, 115VAC, 240VAC optional

Features:

1) The standard heavy-duty probe is made of cast iron with a chrome plated surface (stronger and more wear-resistant than steel pipes);

2) The content of mercury is only 0.7 grams, which is environmentally friendly and efficient;

3) The alarm contact can be set to either normally open or normally closed, and the normal/alarm position can be set. There is a jumper in the control device that allows the switch to be set to a normal state in the vertical or inclined state;

4) It can be equipped with a casing protection probe to reduce the oscillation amplitude of the probe;

5) The bottom of the standard heavy-duty probe is equipped with internal threads for connecting accessories;

6) The oblique switch can be used alone with the probe or in conjunction with the control device;

7) Durable and corrosion-resistant;

8) Easy to install, all probes are equipped with installation accessories;

9) The control device is an industrial dedicated printed circuit board structure;

10) The alarm output time is adjustable, and the control device has adjustable 0-10 seconds

11) Its performance has been confirmed by thousands of application examples around the world.

Application scope:

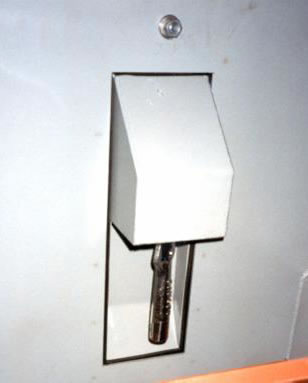

• Blockage detection at chutes or adapters

Conveyor belt deviation detection

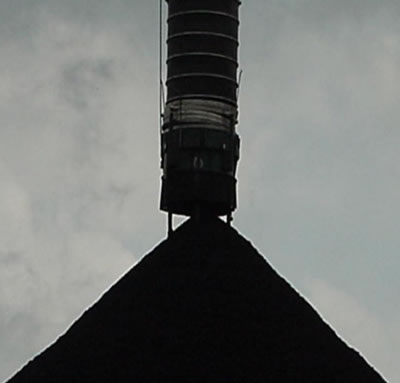

• Dumper discharge probe

Used for detecting material shortage or absence in belts or vibrating feeders

Tilt Switch Probe Selection Table

Common Forms:

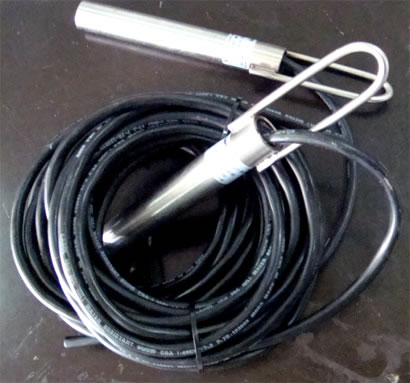

20-39-25 standard, heavy-duty probe

20-30-SS stainless steel probe

21-39 standard, FM licensed CL I+11

There are also other models of tilt switches specifically designed for different occasions and materials.

Optional:

Floating ball - used for liquids and low density materials

AR board - wear-resistant board, used in situations with/without material flow

Common types and names of tilt switches:

Chute blockage switch material flow switch solid material flow switch mercury material level meter inclined material level meter

Stainless steel tilt switch Plastic tilt switch Heavy tilt switch Light tilt switch

Explosion proof tilt switch Ramsey Explosion proof tilt switch Tilt switch Explosion proof type

High temperature resistant tilt switch Ramsey high temperature tilt switch Low temperature tilt switch

Equipped with guide plate tilt switch and floating ball tilt switch
